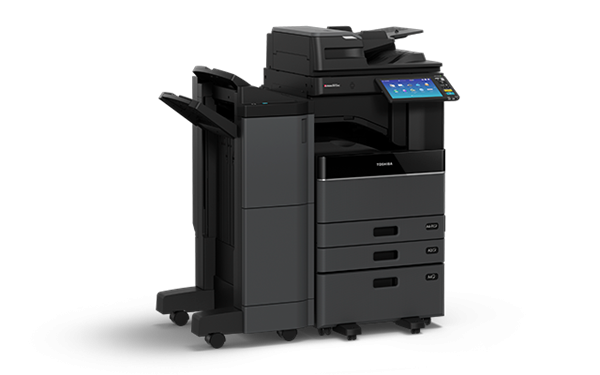

e-STUDIO3015AC

  1. General
  2. Print
  3. Scan
  4. FAX
  5. Copy
  • SPECIFICATIONS
  1. Copy / Print Speed (ppm) Color – 25
  2. B & W – 25
  3. Warm-up Time – 35 sec.
  4. Memory – 2 GB
  5. Storage – 160GB HDD (option)
  6. Dimension (W × D × H) – 575 × 590* × 662mm / 22.6″ × 23.2″ * × 26.1″
  7. Weight Approx. – 57kg / 125.7 lbs
  8. Input Paper Capacity Standard – 350 sheets, Maximum – 2,900 sheets
  9. Available Paper Weight – 60 – 209 g/m² / 16 – 110lbs. Index
  10. Available Paper size – A5-R to A3 / ST-R to LD
  11. Document feeder – Optional 100-sheet RADF
  12. Duplexing – Standard
  13. Finishing Option – Saddle Stitching Finisher, Inner Finisher, Job Separator
Category:

Description

Model e-STUDIO3015AC
General Feature
Control Panel 26 cm (10.1”) Tilting Multi-Touch Colour Panel
Dimensions & Weight 585 x 641 x 787 mm (W x D x H), ~ 78 kg
Paper Size & Weight Cassette 1: A5R-A3, 60-256 g/m2. Cassette 2: A5R-320 x 460 mm, 60-256 g/m2. Bypass: 100 x 148 mm-320 x 460 mm, 52-280 g/m2, banner paper (up to 305 x 1,200 mm, 90-163 g/m2)
Controller Type Toshiba e-BRIDGE Next
Warm-up Time Approx. 12 Seconds from low power mode
Inner Output Tray 400-sheet capacity
Paper Capacity 2x 550 sheets (Cassettes), 1x 100 sheets (Bypass). Maximum 3,200 sheets
Memory Toshiba Secure Htd 320 GB(1), 4 GB RAM
Print Speed Colour: 30 ppm (A4), 16 ppm (A3)
Automatic Duplex Standard Automatic Duplex Unit (60-256 gsm, A5R-305 x 457 mm)
Interface 10Base-T/100Base-TX/1000Base-T, High Speed USB 2.0, WLAN(2) (IEEE802.11b/g/n), Bluetooth(2), Wi-Fi Direct(2)
Print Feature
Resolution 600 x 600 dpi, 5 bit, 1,200 x 1,200 dpi, 2 bit (equiv. 3,600 x 1,200 dpi) with PostScript driver only
Page Description Languages PCL5e, PCL5c, PCL6 (PCL XL), XPS, PDF and PostScript 3 compatible
Print Functions Universal Printer Driver, Driver Templates, Driver plug-ins(2), Print from USB, Hold print, Tandem printing, E-mail direct printing
Supported Systems Windows 10/8.1/7/Server 2008 (32/64 bit), Windows Server 2016/Server 2012 R2/Server 2012/Server 2008 R2 (64 bit), Mac OS X 10.6.8-10.13, Linux/Unix, Citrix, Novell SLES, SAP, AS/400
Scan Feature
Scan Functions WS Scan, Scan to USB, Scan to E-Mail, Scan to File (SMB, FTP, FTPS, IPX/SPX, Local), Meta Scan2), OCR scan2), Scan to Box (e-Filing), WIA, TWAIN
Resolution Maximum 600 x 600 dpi
Scan Speed Reversing Automatic Document Feeder2): up to 73 ipm (300 dpi) in colour and monochrome. Dual Scan Document Feeder2): up to 240 ipm (300 dpi) in colour and
monochrome.
Document Feeder DSDF Feed: 300 sheets @ 35-209 gsm, RADF 100 sheets @ Simplex: 35-157 gsm, Duplex: 50-157 gsm
Scan Modes Auto-Colour (ACS), Colour, Greyscale, Monochrome
File Formats JPEG, Multi/Single Page TIFF/XPS/PDF, Secure PDF, Slim PDF, PDF/A, PDF/A-2, Searchable PDF2) (and other formats like DOCX, XLSX)(2)
Fax Feature
Transmission Speed Approx. 3 seconds per page
Incoming Fax Routing To shared folders (SMB, FTP, IPX/SPX), E-Mail, e-Filing
Communication Super G3, G3 – (opt. 2nd line), Internet Fax T.37
Network Fax Driver for Windows 10/8.1/7/Server 2008 (32/64 bit), Windows Server 2016/Server 2012 R2/Server 2012/Server 2008 R2 (64 bit)
Compression MH/MR/MMR/JBIG
Copy Feature
Resolution Scan: 600 x 600 dpi. Print: 600 x 600 dpi, 5 bit, equiv. 2,400 x 600 dpi with smoothing (monochrome only)
Colour Modes Auto-Colour (ACS), Full Colour, Twin Colour, Mono Colour, Monochrome
First Copy Output Time Colour: Approx. 5.7 seconds, Monochrome: Approx. 4.4 seconds
Colour Settings Hue, Saturation, Colour Balance, RGB adjustment, 5 one-touch modes
Zoom 25-400% (Platen), 25-200% (RADF/DSDF)(2)
Copy Modes Text, Text/Photo, Photo, Printed Image, Map, Image Smoothing
Copy Functions Electronic Sort, Rotate Sort, ID Card Copy, Edge Erase, 2-in-1 / 4-in-1 mode
